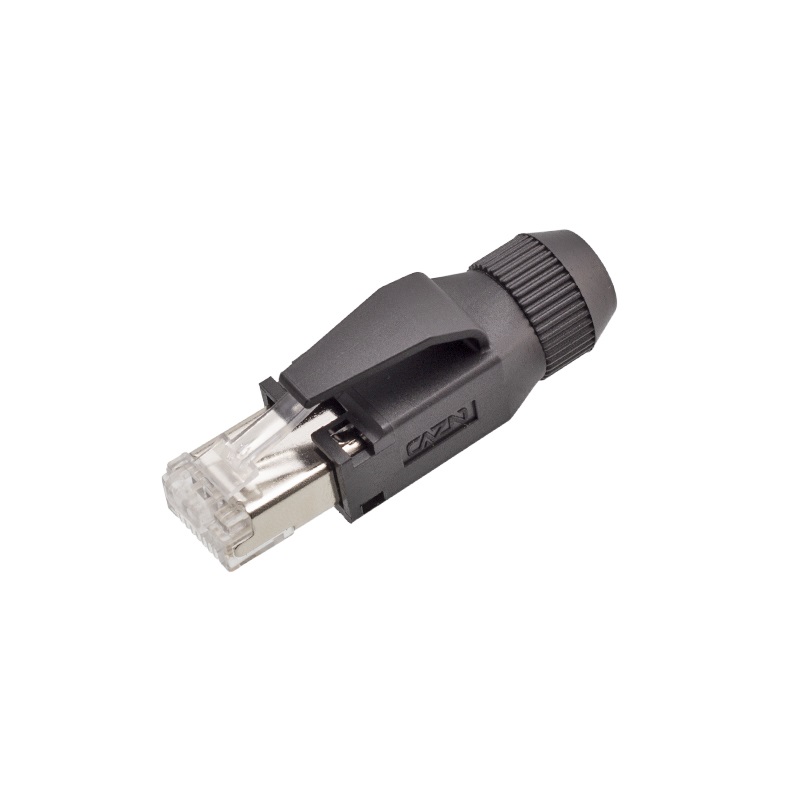

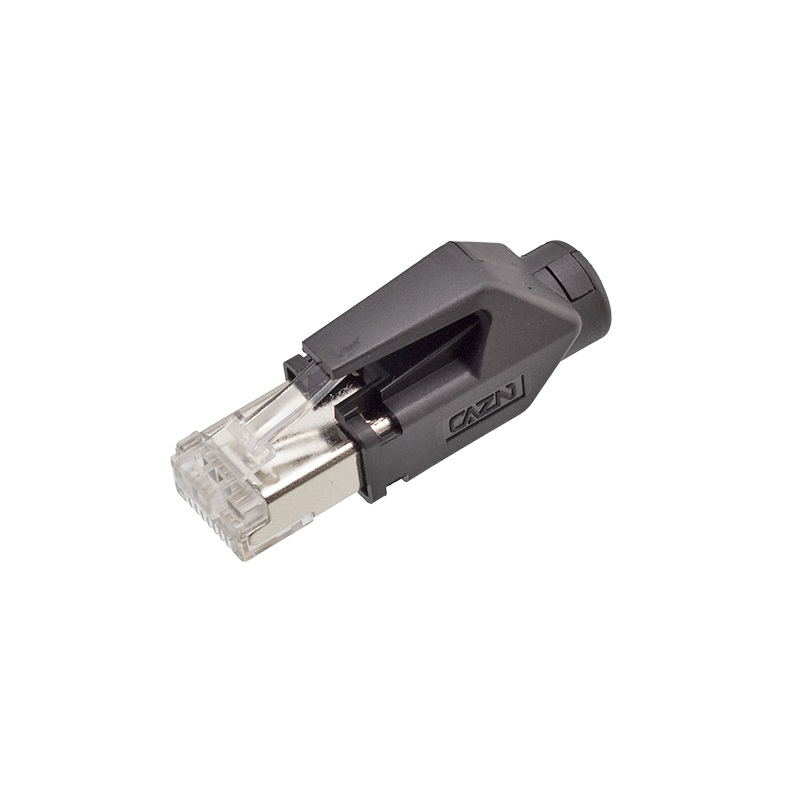

Home / Products / Industrial Connector / RJ45 / Assembled RJ45 integrated 4P CAT5 plastic
RJ45
Industrial RJ45 connector Cat5e is an RJ45 connector designed specifically for industrial environments,Suitable for Cat5e standard data transmission, widely used for connecting network devices in industrial settings.Backup, transmit data signals, and implement network communication to provide reliable connections between devices.And stable data transmission, suitable for industrial applications such as factories, mechanical equipment, control systems, etc.
Product information
Technical Parameters
| Shell material： | Zinc die-casting with nickel plated. |
| Contact material： | Phosphor bronze with nickel plated |
| Use the line diameter： | 23AWG-26AWG |
| Wiring range： | 6.5-9.0MM |
| Meet the criteria： | Cat6 |
| Mating cycles： | ≥750(CYCLES) |
| Product type： | 8 pin |
| Temperature rang： | -40℃~+95℃ |
| Insertion force： | 30 MAX |
| Flame retardant grade： | UL94-V0 |
Application Agreement
Electrical diagram

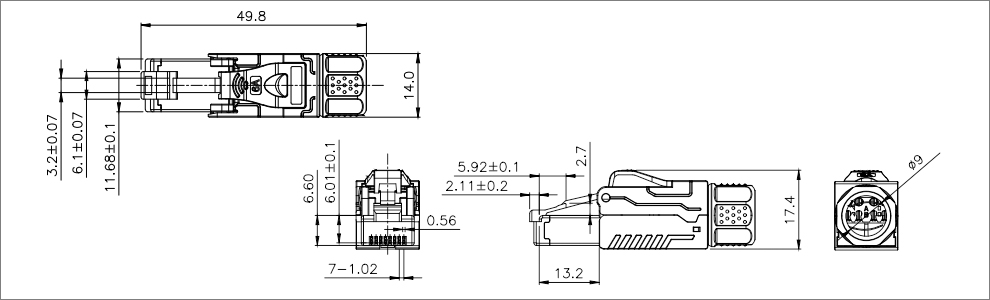

Dimensions
Product Ordering
| Product Name | Number of order | Pins | 3D Download | 2D Download |
| Metal RJ 45 straight plug - SG(Cat6) | CZRJ45007 | 8 |
|
